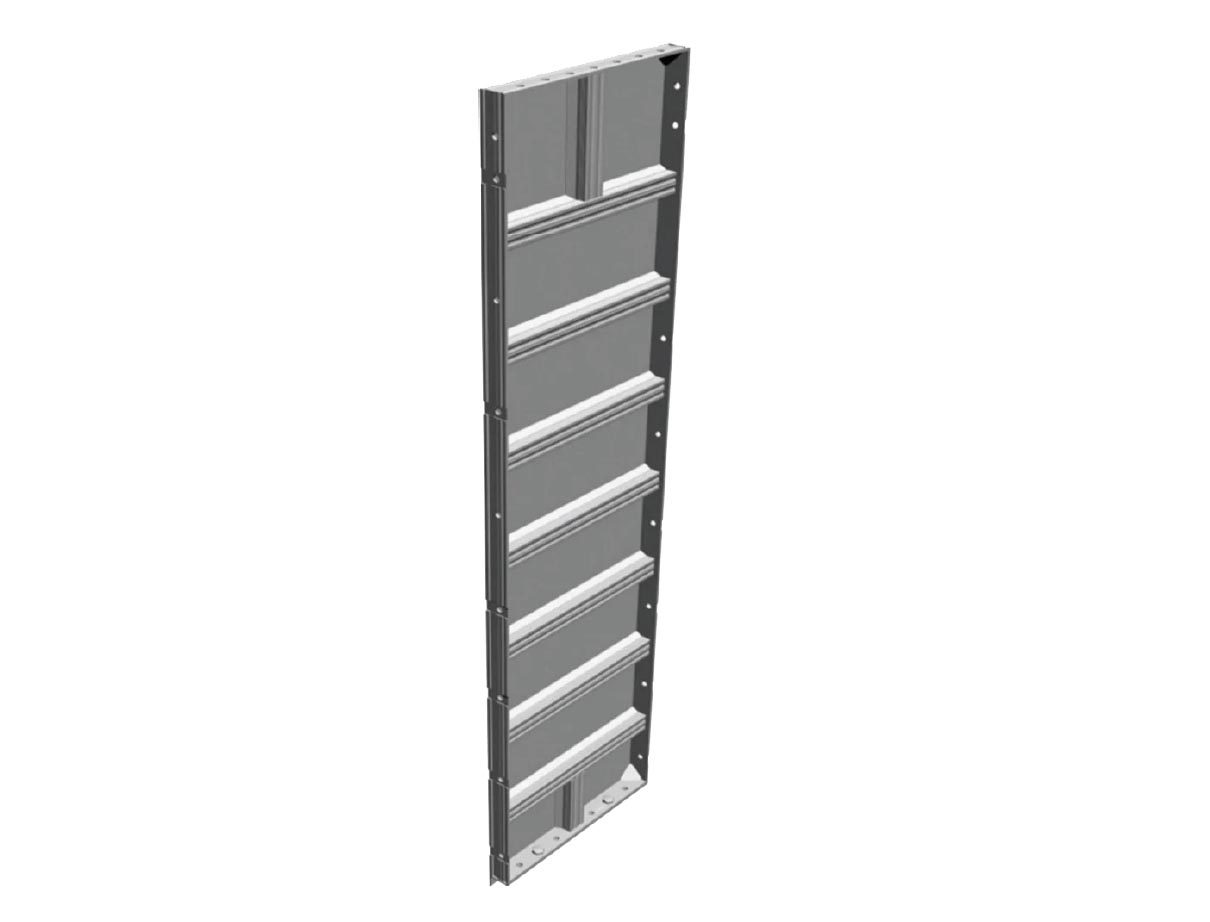

Standard Wall Panel

Standard Wall Panel forms the face of the wall and stiffeners of wall panel are designed such a way that a worker can easily lift and handle. There is no mid-welding in a standard wall panel width.

Item Description	Dimension
Standard Wall Panel
	600mm x 2400mm (H)*
	450mm x 2400mm (H)*
	200mm x 2400mm (H)*
	175mm x 2400mm(H)*

*Height(H)* of the Wall Panel depends on design requirement. It will either be the Standard Wall Panel Height or a Single Wall Panel Height.

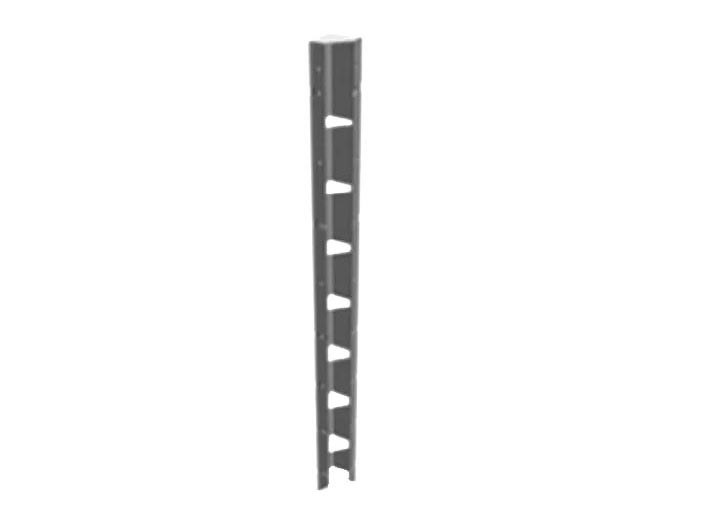

Standard Wall In Corner Panel

Dependent upon each Structure

Item Description	Dimension
Standard Wall In Corner Panel
	(100+100)mm x 2450mm
	(100+125)mm x 2450mm
	(100+150)mm x 2450mm
	(100+175)mm x 2450mm

*Size (LXB)* of the IN-Corner Panel Depends on Design requirement

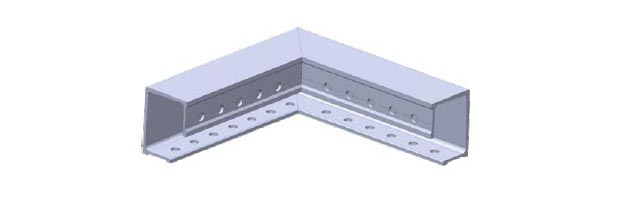

Slab In Corner

Dependent upon each Structure

Connection between Wall Panel & Slab Panel (Inside)

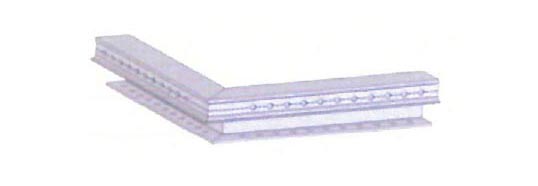

Slab Out Corner

Dependent upon each Structure

Connection between Wall Panel & Slab Panel (Outside)

Standard Slab Panel

Standard Slab Panel sustain the weight of concrete while pouring and provide a horizontal surface for casting to form slab. It rests in between two adjacent slab beams.

Item Description	Dimension
Standard Slab Panel
	600 mm x 1200 mm
	450 mm x 1200 mm
	200 mm x 1200 mm
	175 mm x 1200 mm

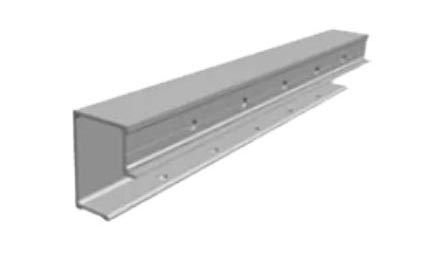

Standard Length

Standard Length is used to sustain the weight of concrete while pouring and casting jobs to form slab. It is used to connect wall and slab panel.

Item Description	Dimension
Standard Length
	(125mm+100mm) x (L)*
	(150mm+150mm) x (L)*
	(125mm+75mm) x (L)*

*Length(L)* of slab length depends on design requirement

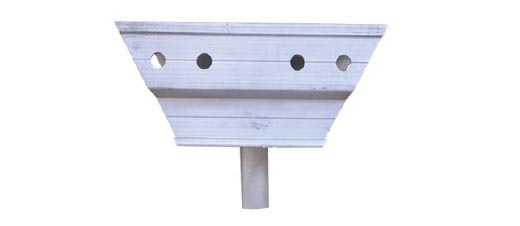

Prop Head (PH)

Size 150 x 300

Used to joint the beams together (middle beam and/ or End beam), the pipe support will be placed under the prop head

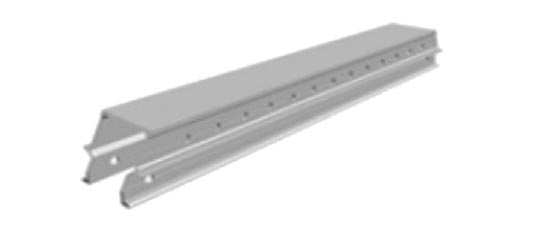

Middle Beam (MB)

Size 150 x 900 I 150 x 1050

Used to joint the prop heads, the middle beam supports the slab panels

End Beam (EB)

Size 150 x 600 I 150 x 900 I 150 x 1050

Used to joint the proper head and slab corner, the end beam supports the slab panels

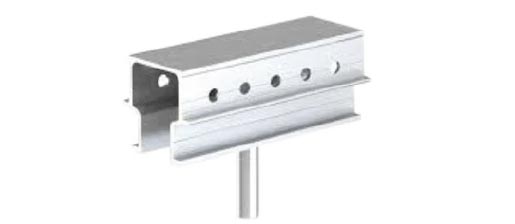

Special Prop Head (EB)

Dependent upon each structure

Used to joint the beams together (Middle beam and / or End beam), This special prop head will be placed where a normal prop head cannot be installed

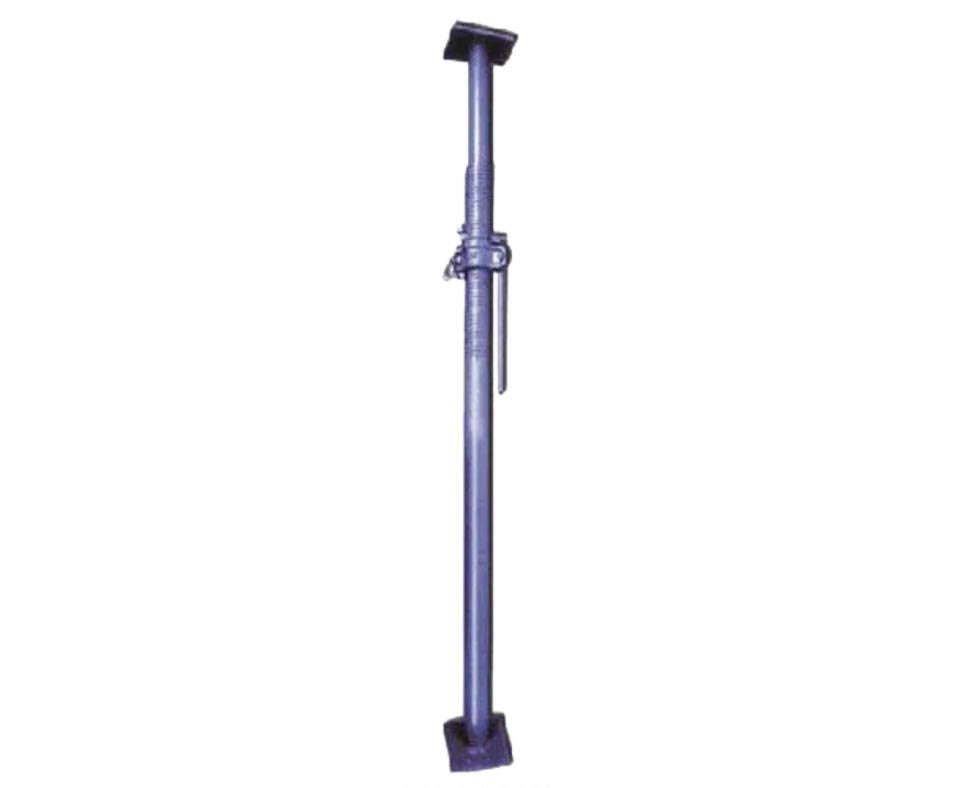

Pipe Support
